copul documentation
copul is a package designed for mathematical computation and visualization of bivariate copula families. It accompanies the Dependence properties of bivariate copula families article released in the Dependence Modeling journal and in particular covers implementations of 35+ copula families, see Copula families, properties and methods for an overview.
Import the package
>>> import copul as cp
List callable copula families
>>> cp.families
['Clayton', 'Nelsen2', 'AliMikhailHaq', 'GumbelHougaard', 'Frank', 'Joe', 'Nelsen7', 'Nelsen8', 'GumbelBarnett', 'Nelsen10', 'Nelsen11', 'Nelsen12', 'Nelsen13', 'Nelsen14', 'GenestGhoudi', 'Nelsen16', 'Nelsen17', 'Nelsen18', 'Nelsen19', 'Nelsen20', 'Nelsen21', 'Nelsen22', 'JoeEV', 'BB5', 'CuadrasAuge', 'Galambos', 'GumbelHougaard', 'HueslerReiss', 'Tawn', 'tEV', 'MarshallOlkin', 'Gaussian', 'StudentT', 'Laplace', 'B11', 'CheckerboardCopula', 'FarlieGumbelMorgenstern', 'Frechet', 'IndependenceCopula', 'LowerFrechet', 'Mardia', 'Plackett', 'Raftery', 'UpperFrechet']
Call a copula family and view its parameters
>>> clayton = cp.Clayton()
>>> cp.Clayton().parameters
{'theta': Interval(-1, oo)}
>>> cp.MarshallOlkin().parameters
{'alpha_1': Interval(0, 1), 'alpha_2': Interval(0, 1)}
Simulate data points from a copula
>>> cp.Clayton(0.5).rvs(n=3)
array([[0.33620426, 0.34329421],
[0.34242024, 0.21372513],
[0.5785887 , 0.94612088]])
Generate scatter plots of a copula
cp.GenestGhoudi(4).scatter_plot()
cp.GenestGhoudi(8).scatter_plot()
Cumlative distribution functions
>>> cp.Clayton().cdf # cumulative distribution function
Max(0, -1 + v**(-theta) + u**(-theta))**(-1/theta)
>>> cp.Clayton(theta=0.5).cdf # specify a parameter
Max(0, u**(-0.5) + v**(-0.5) - 1)**(-2.0)
>>> cp.Clayton(0.5).cdf # the parameter can be passed as a positional argument
Max(0, u**(-0.5) + v**(-0.5) - 1)**(-2.0)
>>> cp.Clayton(0.5).cdf(0.3, 1)
0.
cp.UpperFrechet().plot_cdf()
cp.LowerFrechet().plot_cdf()

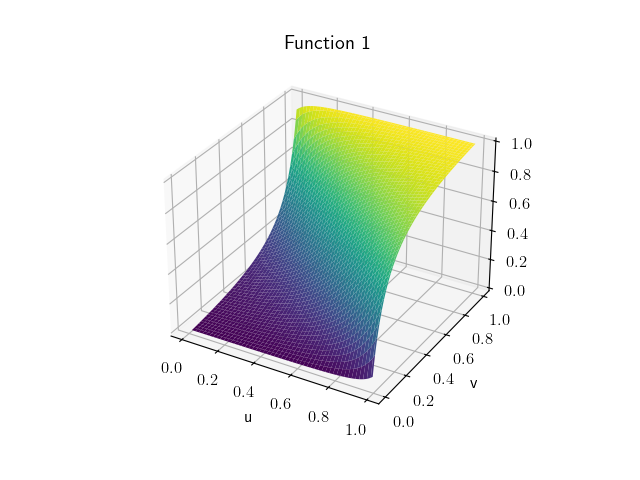

Visualize conditional distributions of copulas
>>> cp.Plackett().cond_distr_1()
(theta - (-2*theta*v*(theta - 1) + (2*theta - 2)*((theta - 1)*(u + v) + 1)/2)/sqrt(-4*theta*u*v*(theta - 1) + ((theta - 1)*(u + v) + 1)**2) - 1)/(2*theta - 2)
>>> plackett = cp.Plackett(0.1)
>>> plackett.plot(plackett.cond_distr_1, plackett.cond_distr_2)
Visualize probability density functions of copulas
>>> cp.HueslerReiss(0.3).pdf
(u*v)**(-(log(v)/log(u*v) - 1)*(erf(sqrt(2)*(0.15*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 3.33333333333333)/2)/2 + 1/2) + (erf(sqrt(2)*(0.15*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 3.33333333333333)/2)/2 + 1/2)*log(v)/log(u*v))*((-((log(v)/log(u*v) - 1)*(erf(sqrt(2)*(0.15*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 3.33333333333333)/2)/2 + 1/2) - (erf(sqrt(2)*(0.15*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 3.33333333333333)/2)/2 + 1/2)*log(v)/log(u*v))*log(u*v) - (log(v) - log(u*v))*(-0.075*sqrt(2)*(log(v)/log(u*v) - 1)*(-1/(log(v)/log(u*v) - 1) + log(v)/((log(v)/log(u*v) - 1)**2*log(u*v)))*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)/sqrt(pi) + 0.075*sqrt(2)*((log(v)/log(u*v) - 1)*log(u*v)**2/log(v)**2 - log(u*v)/log(v))*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)*log(v)/(sqrt(pi)*log(u*v)) + erf(sqrt(2)*(0.15*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 3.33333333333333)/2)/2 - erf(sqrt(2)*(0.15*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 3.33333333333333)/2)/2))*(-((log(v)/log(u*v) - 1)*(erf(sqrt(2)*(0.15*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 3.33333333333333)/2)/2 + 1/2) - (erf(sqrt(2)*(0.15*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 3.33333333333333)/2)/2 + 1/2)*log(v)/log(u*v))*log(u*v) - (-0.075*sqrt(2)*(log(v)/log(u*v) - 1)*(-1/(log(v)/log(u*v) - 1) + log(v)/((log(v)/log(u*v) - 1)**2*log(u*v)))*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)/sqrt(pi) + 0.075*sqrt(2)*((log(v)/log(u*v) - 1)*log(u*v)**2/log(v)**2 - log(u*v)/log(v))*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)*log(v)/(sqrt(pi)*log(u*v)) + erf(sqrt(2)*(0.15*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 3.33333333333333)/2)/2 - erf(sqrt(2)*(0.15*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 3.33333333333333)/2)/2)*log(v))*log(u*v) + sqrt(2)*(log(v) - log(u*v))*(-0.0375*(-1 + log(v)/((log(v)/log(u*v) - 1)*log(u*v)))**2*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)*log(u*v)/log(v) + (-0.15 + 0.15*log(v)/((log(v)/log(u*v) - 1)*log(u*v)))*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)/(log(v)/log(u*v) - 1) - (-0.075 + 0.075*log(v)/((log(v)/log(u*v) - 1)*log(u*v)))*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)*log(u*v)/log(v) - (-0.075 + 0.075*log(v)/((log(v)/log(u*v) - 1)*log(u*v)))*exp(-5.55555555555556*(0.045*log(-log(v)/((log(v)/log(u*v) - 1)*log(u*v))) + 1)**2)/(log(v)/log(u*v) - 1) + (-0.15*(log(v)/log(u*v) - 1)*log(u*v)/log(v) + 0.15)*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)*log(u*v)/log(v) - (-0.075*(log(v)/log(u*v) - 1)*log(u*v)/log(v) + 0.075)*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)*log(u*v)/log(v) + 0.0375*(-(log(v)/log(u*v) - 1)*log(u*v)/log(v) + 1)**2*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)/(log(v)/log(u*v) - 1) - (-0.075*(log(v)/log(u*v) - 1)*log(u*v)/log(v) + 0.075)*exp(-5.55555555555556*(0.045*log(-(log(v)/log(u*v) - 1)*log(u*v)/log(v)) + 1)**2)/(log(v)/log(u*v) - 1))*log(v)/sqrt(pi))/(u*v*log(u*v)**3)
>>> cp.HueslerReiss(0.3).plot_pdf()
Use matrices for Checkerboard copulas
Checkerboard copulas are copulas that have probability density functions, which are constant on rectangles and can be represented by matrices.
>>> matr = [[0, 9, 1], [1, 0, 9], [9, 1, 0]]
>>> ccop = cp.BivCheckPi(matr)
>>> ccop.cdf(0.2, 1)
0.2
>>> ccop.pdf(0.2, 1)
0.03333333333333333
>>> ccop.scatter_plot()
>>> ccop = cp.CheckerboardCopula(matr)
>>> ccop.cdf(0.2, 1)
0.2
>>> ccop.pdf(0.2, 1)
0.03333333333333333
>>> ccop.scatter_plot()
>>> ccop = cp.CheckPi(matr)
>>> ccop.cdf(0.2, 1)
0.2
>>> ccop.pdf(0.2, 1)
0.03333333333333333
>>> ccop.scatter_plot()
>>> ccop = cp.CheckerboardCopula(matr)
>>> ccop.cdf(0.2, 1)
0.2
>>> ccop.pdf(0.2, 1)
0.03333333333333333
>>> ccop.scatter_plot()
>>> ccop.plot_pdf()
Spearman’s rho, Kendall’s tau and Chatterjee’s xi
>>> cp.CuadrasAuge().spearmans_rho()
-3*delta/(delta - 4)
>>> cp.CuadrasAuge(0.5).spearmans_rho()
0.428571428571427
>>> cp.FarlieGumbelMorgenstern().kendalls_tau()
2*theta/9
>>> cp.AliMikhailHaq().chatterjees_xi()
-theta/6 - 0.666666666666667 + 3/theta - 2/theta**2 - 2*(1 - theta)**2*log(1 - theta)/theta**3
>>> cp.Gaussian().plot_rank_correlations(1_000_000, 50)
Archimedean copulas: Generator and inverse generator functions
Archimedean copulas are characterized by a generator function, which is available in the package.
>>> nelsen7 = cp.Nelsen7()
>>> nelsen7.generator
-log(t*theta - theta + 1)
>>> nelsen7.inv_generator
(theta*exp(y) - exp(y) + 1)*exp(-y)*Heaviside(-y - log(1 - theta))/theta
>>> cp.Nelsen7(0.5).plot_generator()

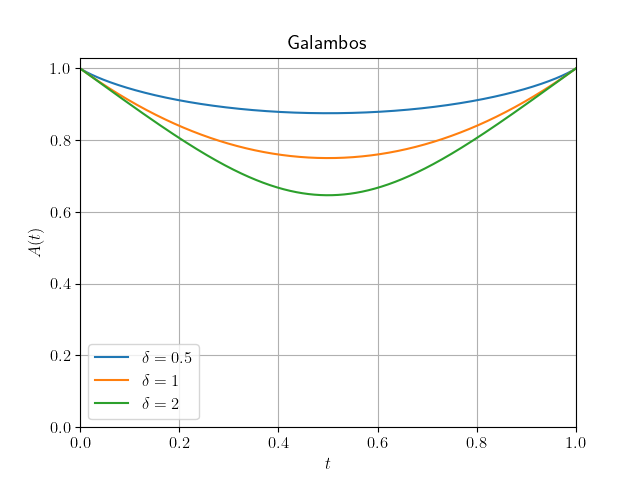

Extreme-value copulas: Pickands dependence functions
Extreme-value copulas are characterized by a pickands dependence function, which is also available in the package.
>>> galambos = cp.Galambos()
>>> galambos.pickands
1 - 1/((1 - t)**(-delta) + t**(-delta))**(1/delta)
>>> galambos.plot_pickands(delta=[0.5, 1, 2])
